Universal Controllers (E Controllers)

New Controller with Universal Design. Small size, More floor space, and Saving Energy.

Kawasaki has incorporated its 50 years of experience as a robot industry leader into the development of the most technically advanced controller available.
For Asia For North America, Europe with Trans Unit. Teach Pendant

For Asia

For North America,
Europe with Transformer Unit

Teach Pendant

The E0X controllers are standard for world-wide use and available for multiple primary power supply voltages with a separate transformer unit. Achieve extremely compact design, compared to E2X/3X/4X controllers. The E03 controller, for use on palletizing robots, has an electricity regeneration function that reduces energy consumption.

VIEW SPEC

SPECIFICATIONS

UNIVERSAL CONTROLLERS SPECIFICATIONS
AreaAmericaE01E02E03E04Option
Europe
Japan & Asia
Dimensions (mm) W550 × D580 × H278
Transformer unit : W550 × D580 ×H178
Construction Enclosed structure with indirect cooling system -
Controlled Axes (axes)
Option (axes)
7
(Max 9)
7
(Max 9)
5
(Max 6)
6
(Max 8)
Described in ()
Memory Capacity (MB) 8 -
I/O SignalsExternal OperationEmergency stop, Hold etc. -
Input (Channels) 32 Max 96
Output (Channels) 32 Max 96
Cable LengthRobot Harness (m) 5 10,15
Teach Pendant (m) 5 10,15
Mass (kg) 40 40 45 40 Transformer unit : 45
Power Requirements AC200-220V ±10%、50/60Hz、3Φ
Class-D (3rd class) earth connection (earth connection dedicated to robots) , Leakage current: max 100 mA
-
Installation EnvironmentAmbient
Temperature  (℃)
0 - 45 -
Relative
Humidity (%)
35 - 85 (No dew, nor frost allowed) -
Teach Pendant Color TFT teach pendant, Emergency stop switch, Teach lock switch, Enable switch -
External Memory - USB Memory
External Interface USB, Ethernet (100BASE-TX), RS-232C -
Robot Arc Series
R Series
B Series
R Series
CX Series
Z Series
M Series
Palletizing Series M Series -

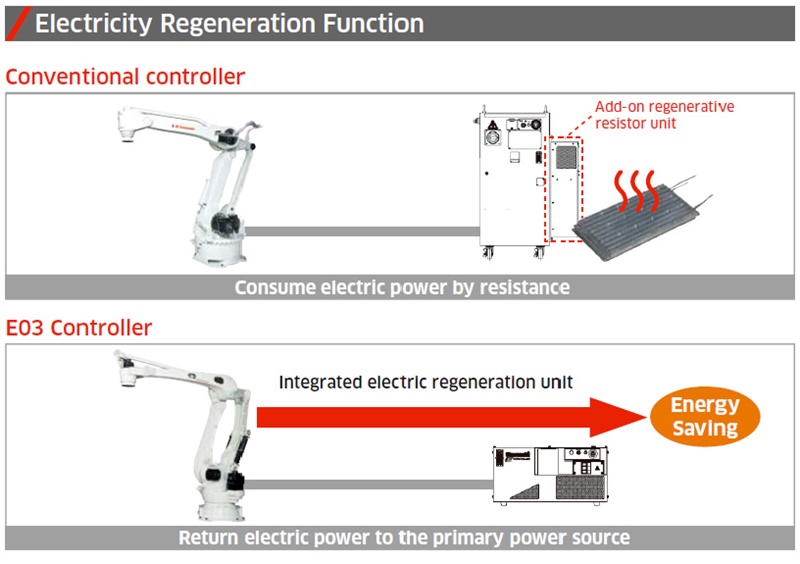

Electricity Regeneration Function

Conventional controller
E03 Controller
